AudioCodes MP1xx Configuration Guide

Supported Devices

Currently this has only been tested on the MP124, however it should work on any of the MP1xx devices.

BroadWorks Configuration

• Both EV and EV Lite are built the same as a Sangoma Vega

• Download configuration file from BroadWorks same as Vega

• Device Profile type: AudioCodes_MP-124_Lite

Device Configuration

• Config does not include IP details

• Config does not include Admin password details

  • Both will be set manually on the device

• AudioCodes come with a static IP address

Default Network Settings

Default Credentials

Set IP Address

1. Navigate to the IP address using HTTPS

2. Enter login credentials (Username: (contact support) / Password: (contact support))

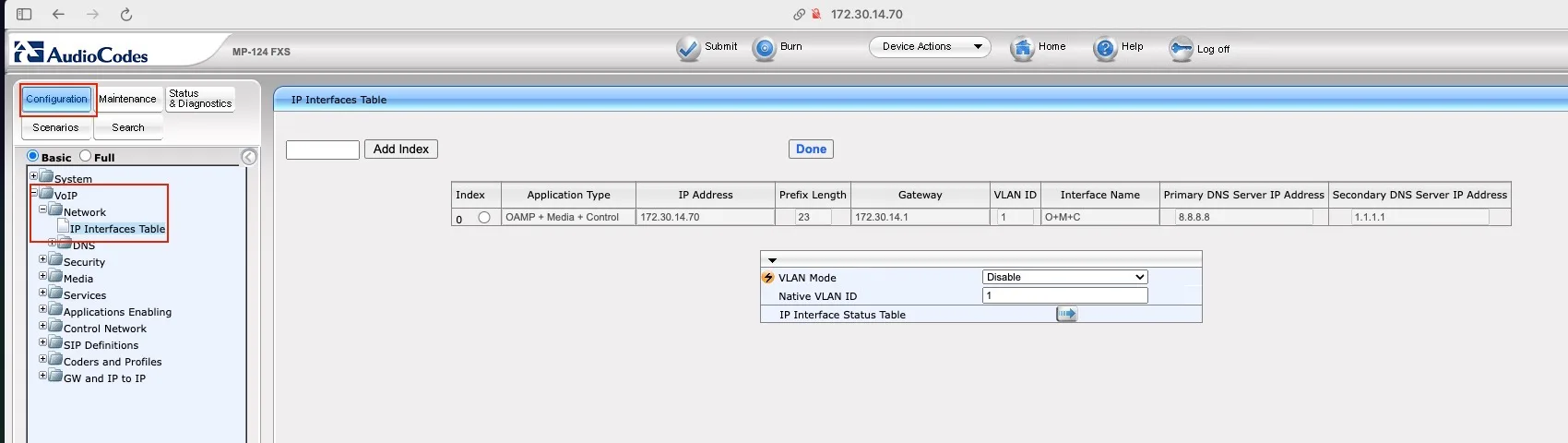

3. Navigate to Configuration > VoIP > Network > IP Interface Table



4. Select Index 0 and click Edit



5. Enter the desired IP address in the IP Address field

6. Enter the desired subnet mask in the Prefix Length field

   • This is the subnet in slash notation — almost always /24

7. Enter the desired gateway address in the Gateway field

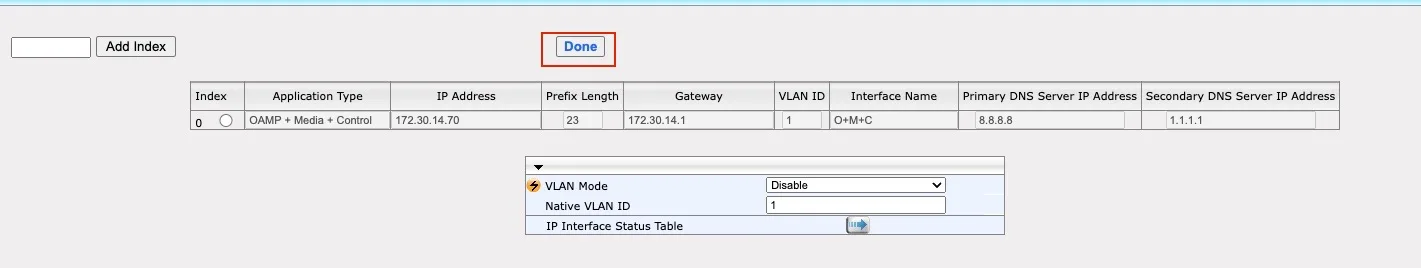

8. Click Apply, then click Done

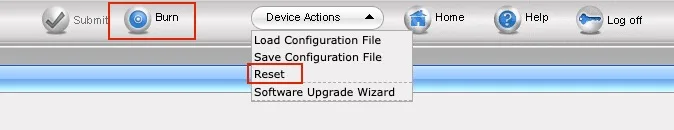

9. When prompted to restart, first click Submit and Burn at the top of the page

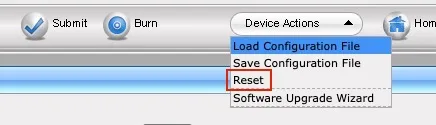

10. Open the Device Actions dropdown and click Reset



11. Click Reset again to confirm



12. You will lose access to the device — navigate to the new IP address to access the GUI again

Set New Admin Password

1. Navigate to the IP address using HTTPS

2. Enter login credentials

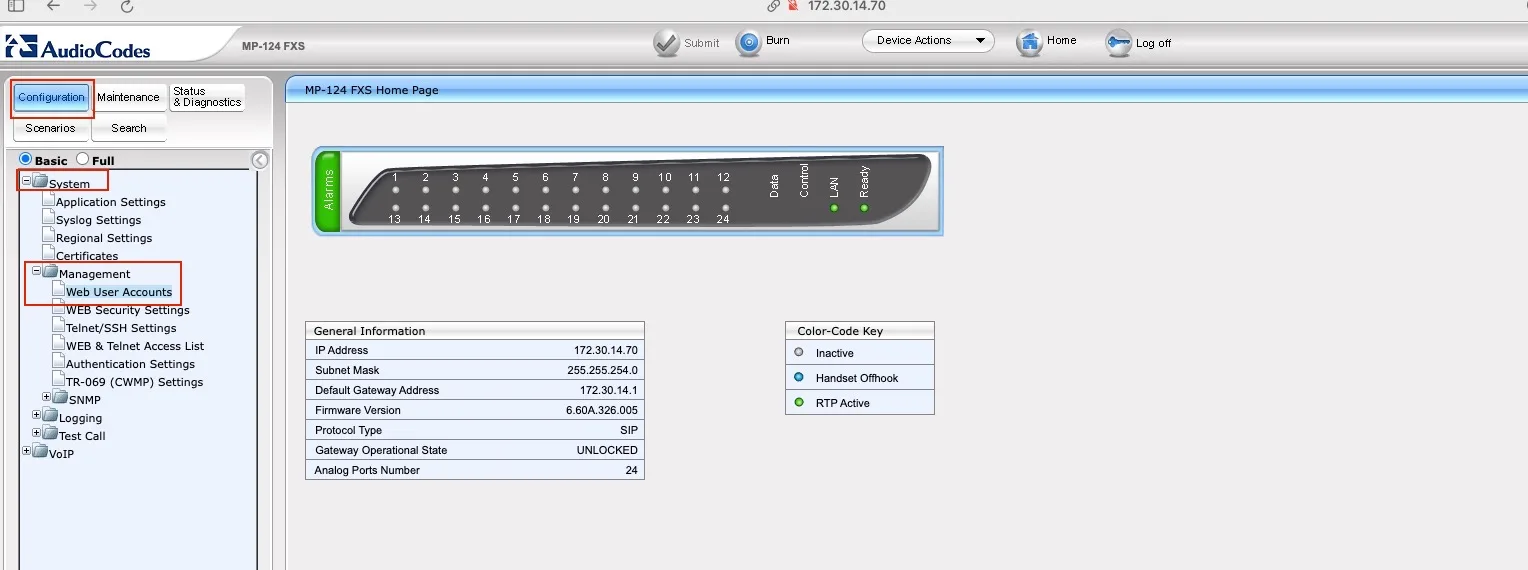

3. Navigate to Configuration > System > Management > Web User Accounts

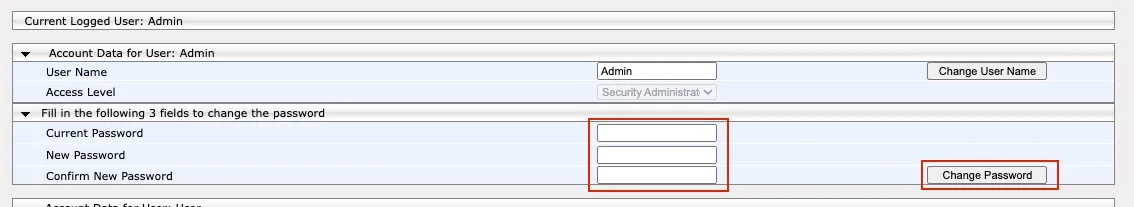

4. In the "Fill in the following 3 fields to change the password" section for the Admin user:

   1. Enter the current password: (contact support)

   2. Enter the new password

   3. Re-enter the new password

5. Click Change Password

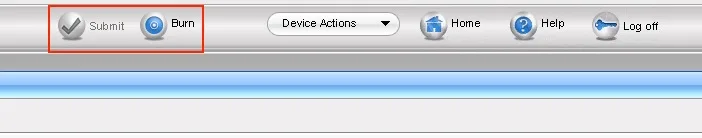

6. Once the page reloads, click Burn at the top of the page to save changes to memory



Uploading a Configuration File

• Configs are .ini files and can be downloaded from BroadWorks

• There are two upload methods:

  • Partial config upload — applies only the parameters present in the config file, leaving existing settings untouched

  • Full config upload — resets all settings to factory state, then applies the parameters in the config file

Uploading a Partial Config File

1. Navigate to the IP address using HTTPS

2. Enter login credentials

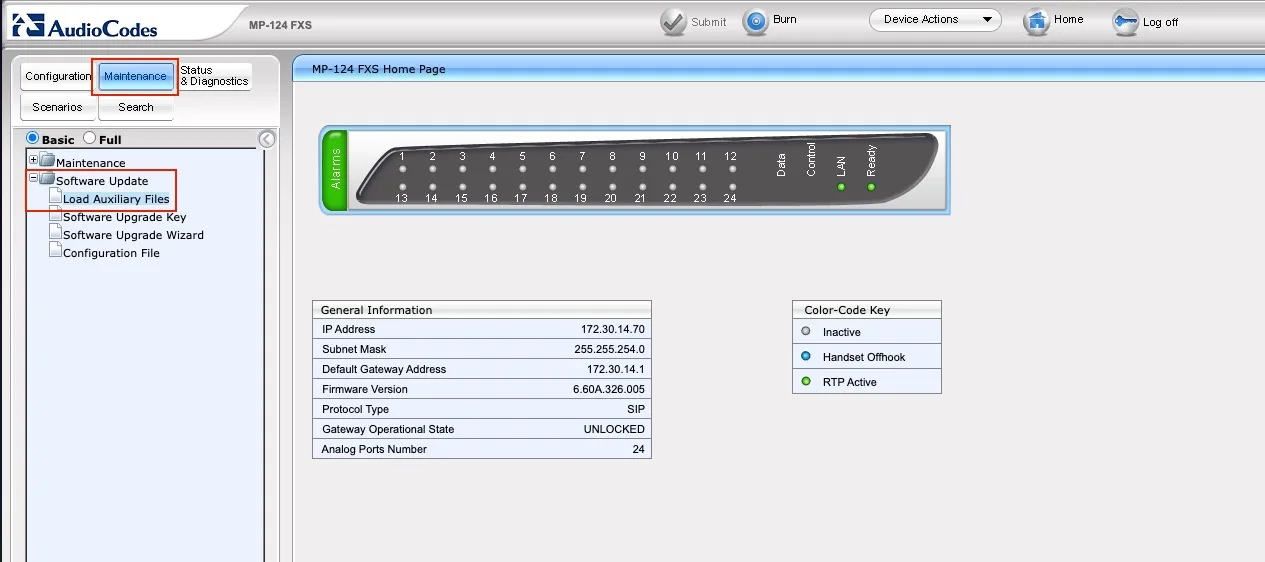

3. Navigate to Maintenance > Software Update > Load Auxiliary Files

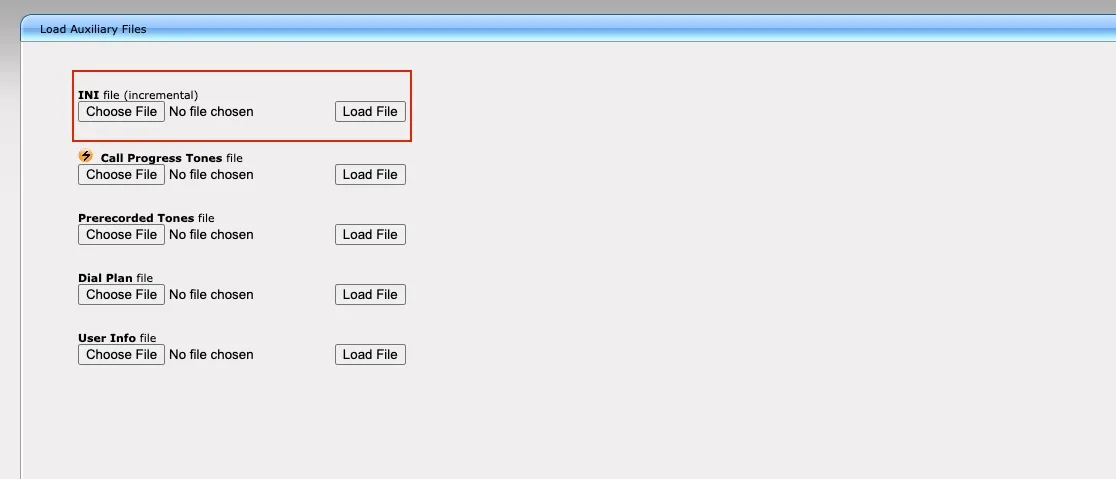

4. Under INI File (Incremental), choose the file you wish to upload

5. Click Load File



6. Confirm the success message is displayed

7. Click Burn File at the top of the screen and reboot if required



Uploading a Full Config File

1. Navigate to the IP address using HTTPS

2. Enter login credentials

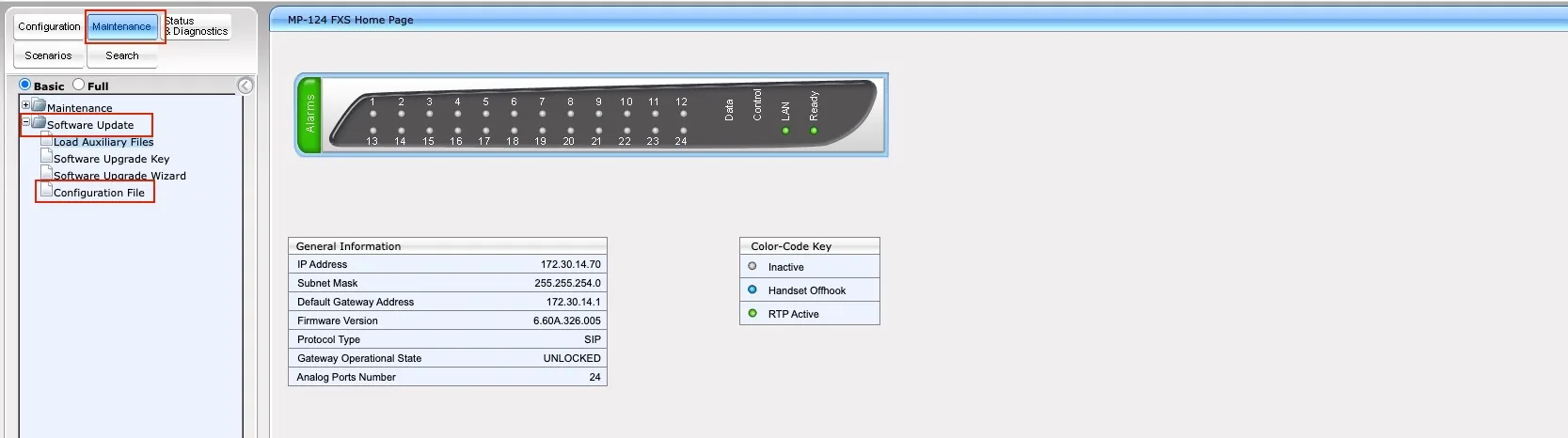

3. Navigate to Maintenance > Software Update > Configuration File



4. Under Load the INI File to the Device, choose the file you wish to upload

5. Click Load File



6. The device will restart and load the new configuration

7. Once the device is back online, log in and confirm the changes were successful
