Overview

The Cisco ATA 19x does not support proper authentication for provisioning so we will not be building it through DMS. All ATA boxes will need to be manually provisioned using the following guide.

There are 2 supported models:

• ATA-191

• ATA-192

There is a Device Profile Type built for these devices to track inventory, even though they are manually provisioned:

• Cisco-ATA-19x

Guidelines

Default login credentials:

• USERNAME: (contact support)

• PASSWORD: (contact support)

Credentials after config restore:

• USERNAME: (contact support)

• PASSWORD: (contact support)

To configure, upload the backup from below. There is one for the US and on for UK/EU. This will provision all settings other than SIP credentials which will be entered manually.

• US Template

• EU Template

Configuration steps:

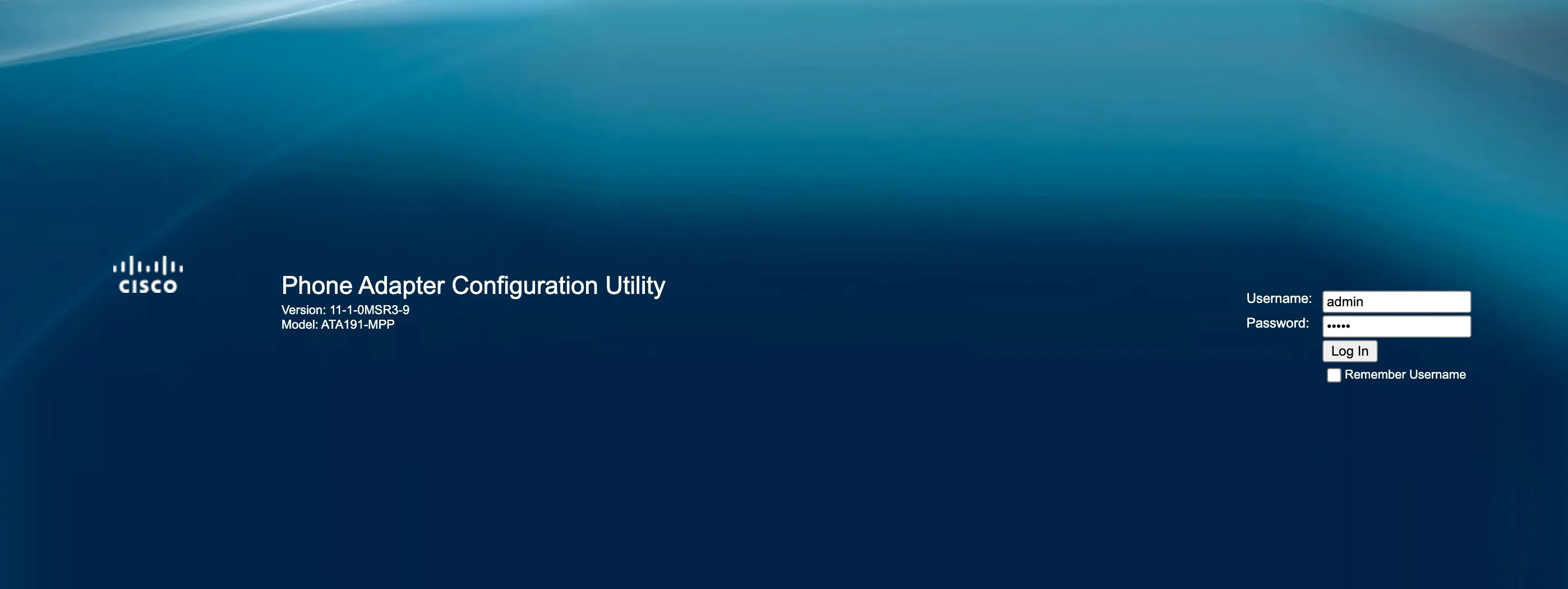

1. Navigate to the IP address of the ATA device and login with the default credentials from above.

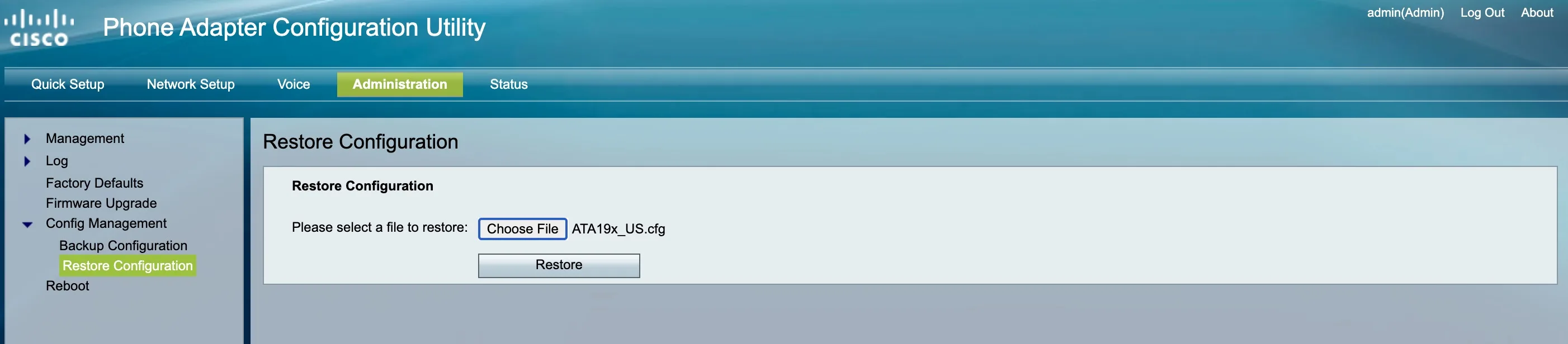

2. **Navigate to Administration – Config Management – Restore Configuration. **



3. Click Choose File – Locate the file downloaded from below and select it – Click Restore



4. After the restore is complete, the device will reboot. Once presented with the Login screen use the new credentials from above to log in

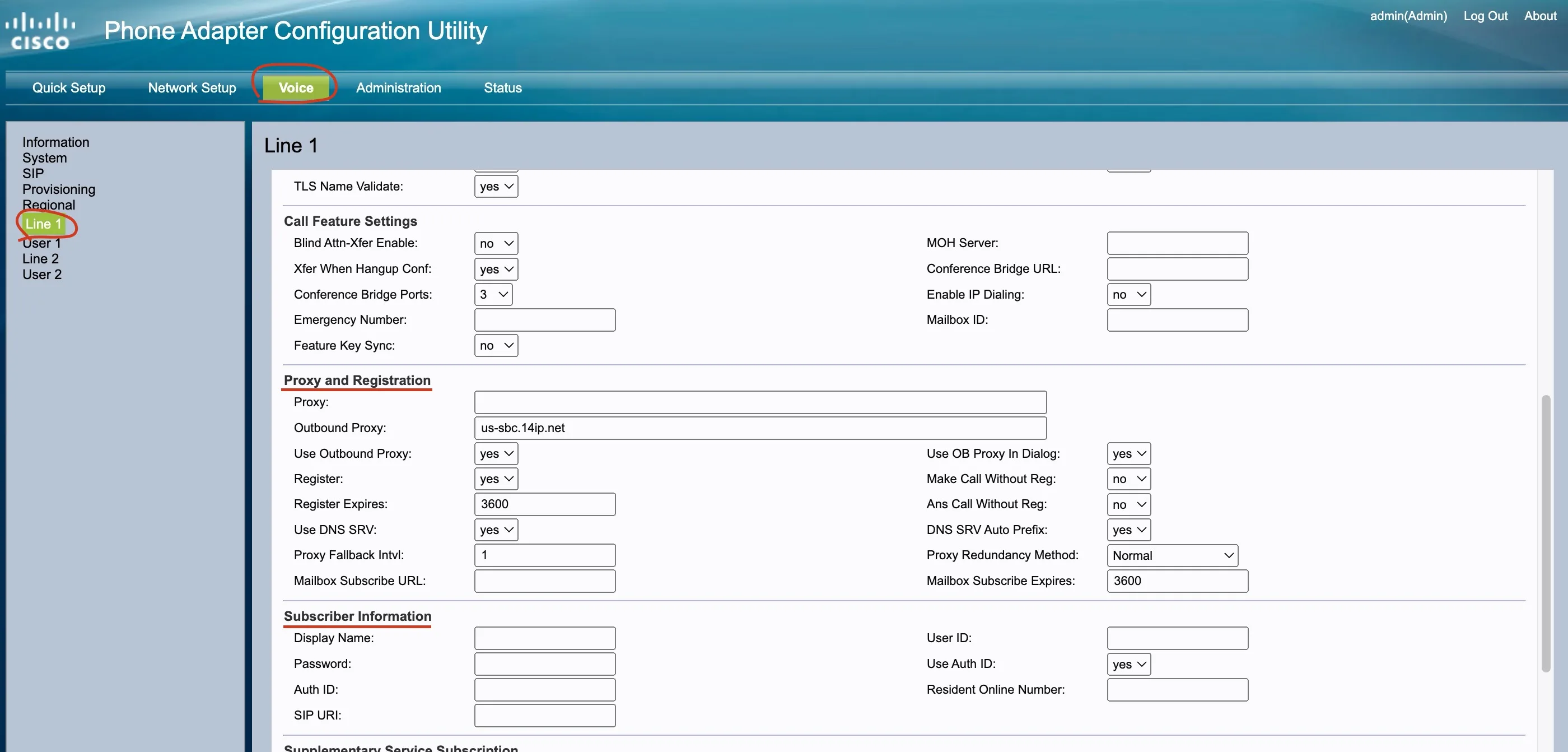

5. Navigate to Voice – Line 1 – and Scroll down to the sections Proxy and Registration and Subscriber Information.



6. Under Proxy and Registration, Enter the site Domain in the Proxy Field

7. Under Subscriber Information, Enter the following:

   • Display Name: Broadworks CLID Name

   • UserID: Broadworks User Line port prefix (Does not need the @domain)

   • Password: Broadworks User Authentication Password

   • Auth ID: Broadworks User Authentication Username

8. Once Complete, got to the bottom of the page and click Submit.*



9. Wait for the page to refresh, you will be presented with the Information page where you can see the Registration State to confirm it has been registered.
